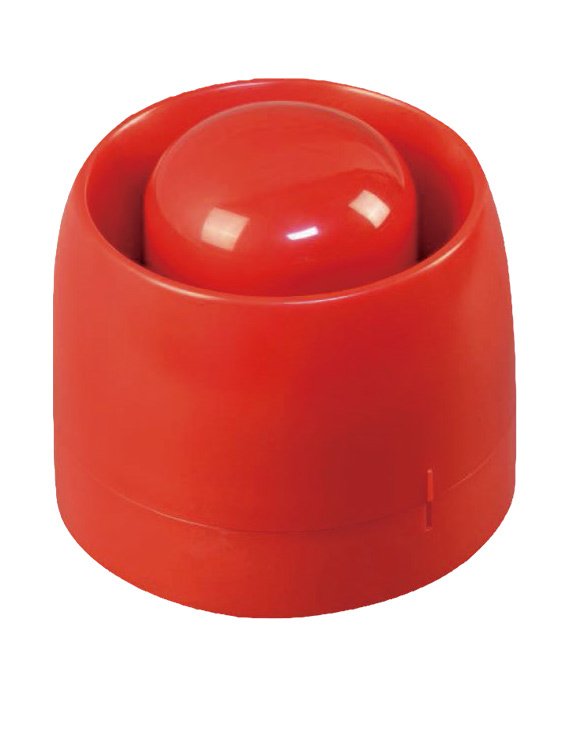

C-9404 Conventional Sounder


 Feature

    ☆2 selectable tones
    ☆LPCB approved
    ☆Standard: EN 54-3


Technical Specifications

    ☆Operating Voltage: Power: 24V (20V~28V)
    ☆Operating Current: Start current ≤35mA
    ☆Power Consumption: 0.84W
    ☆Indoor Application: Type A
    ☆Sound Level:
        Tone 1: Minimum sound level 95db(1 meter in front)
        Tone 2: Minimum sound level 95db(1 meter in front)
    ☆Ingress Protection Rating: IP33C
    ☆Operating Temperature: -109C~+50℃
    ☆Relative Humidity: ≤95%,non condensing
    ☆Material of Enclosure and Color: ABS, red
    ☆Dimension (DxH):
        ф110mmx110.4mm (deep base)
        ф110mmx95.9mm(shallow base)
    ☆Mounting Hole Spacing: 55mm~80mm
    ☆Weight:
        About 355g (deep base)
        About 327.2g (shallow base)



Download:C-9404_DS10104816 Datasheet
