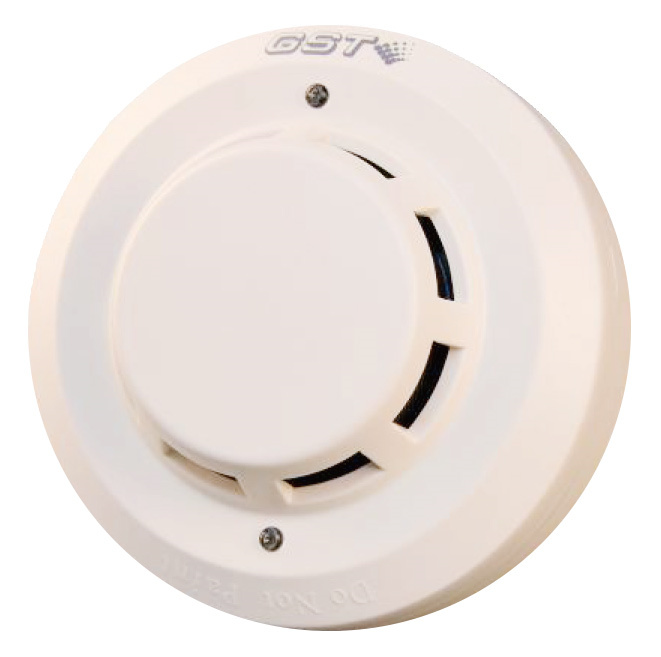

R6601 Conventional Smoke Detector


 Feature

    ☆ N/O contact output, contacts closed and self-lock when alarming
    ☆ Scattering technology
    ☆ Unique labyrinth design protect against insect, dust, light infiltration


Technical Specifications

    ☆ Operating Voltage: 12VDC
    ☆ Operating Current:
           Standby Current≤1mA
           Alarm Current≤ 20mA
    ☆ Operating Environment:
           Temperature: -10℃ ~+50℃
           Relative Humidity: 95%, non condensing
    ☆ Dimensions: Diameter 100mm, Height 56mm



Download:R6601_DS10102367 Datasheet
