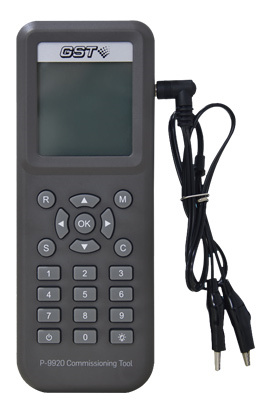

P-9920 Commissioning Tool



P-9920 Commissioning Tool is a portable handheld device,Using this tool, can register online loop devices (such as detectors, modules, MCP, sounder and sounder strobes,etc.) instead of FACP. It also can identify device type, test device functionality, and check repeat devices on same loop.It is very helpful for engineer to do troubleshooting during devices installation and project commissioning. In addition.this tool also can set and read device address, sensitivity,parameter etc.instead of handheld programmer.

Feature

    ☆ Handheld unit, small size, easy to carry and operate
    ☆ Register on-line devices, identify device type, report repeat
        address on same loop, test device functionality, set and read
        device's address, sensitivity etc
    ☆ Adopt 128*128 dot matrix LCD screen with backlight display
    ☆ Low power consumption mode, automatic shutdown
    ☆ Low battery indication


Technical Specifications

    ☆ Power: 4 pcs AA 1.5V batteries or DC5V USB power supply
    ☆ Current:
             Operating current≦l2mA
             Standby cument≦0.3mA
    ☆ Operating environment:
             Temperature:-10℃~+50℃
             Relative humidity 95%, no condensation
    ☆ Dimensions: 166mmX62mmX26mm
    ☆ Ingress Protection Rate: IP40



Download:P-9920_DS60103085 Datasheet
