Site:Fire Alarm System / EN Intelligent Fire Alarm System / Intelligent Detectors

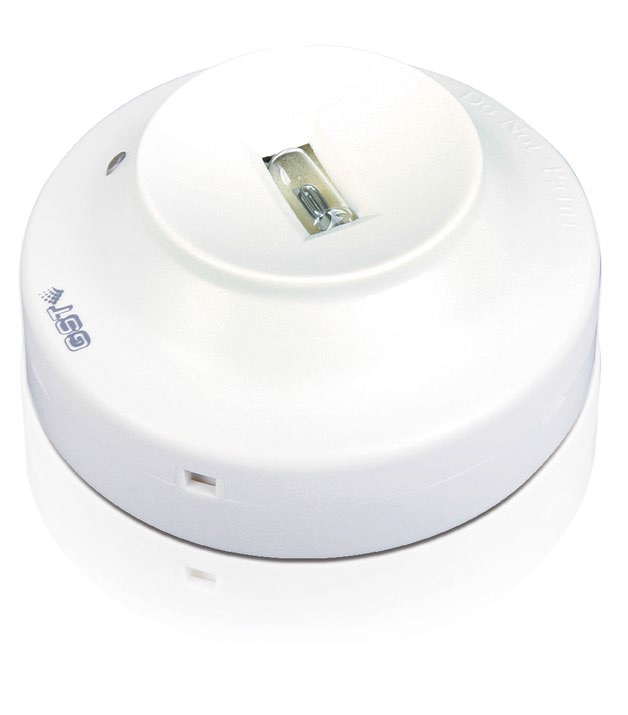

I-9104 Intelligent Ultraviolet Flame Detetor
  Feature

   ☆Ultraviolet sensor that detects the UV rays produced by a flame
   ☆Aesthetically pleasing Low profile design
   ☆Dust / corrosion / humidity resistant
   ☆Electronically addressed
   ☆Three sensitivity levels


Technical Specifications

   ☆Operating Voltage: 24VDC
   ☆Operating Current:
                      Standby Current: 2mA
                      Alarm Current: 2.5mA
   ☆Operating Environment:
                          Temperature: -10℃ ～+50℃
                          Relative Humidity: 95% non condensing
   ☆Dimensions: Diameter 103mm, Height 53.5mm



Download：I-9104_DS10102428 Datasheet
