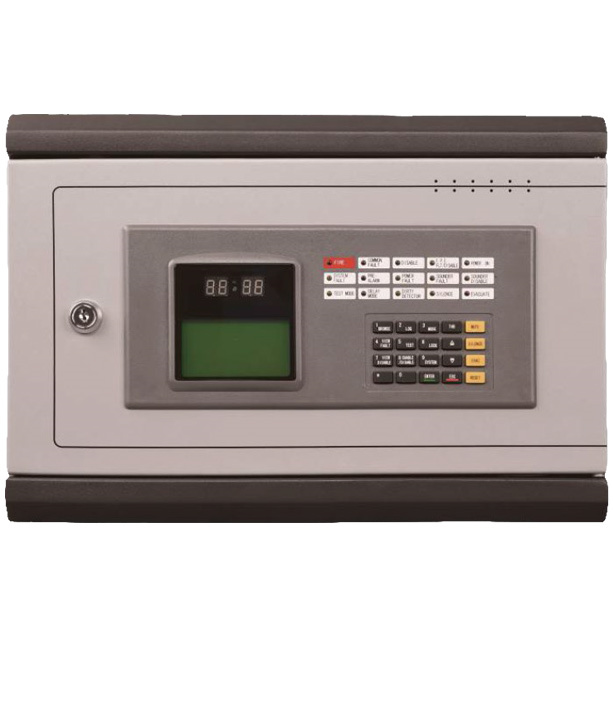

GST-NRP00 Network Repeater Panel



Feature

    ☆ Provide remote display and control of system
    ☆ Password protected access level
    ☆ 8X18 characters LCD screen
    ☆ 15 LEDs to display important information
    ☆ Functional control of network panels
    ☆ Network-wide operation: Acknowledge, Silence, Reset
    ☆ Flush-mount or surface-mount structure
    ☆ Meet network protocol by selecting suitable network card


Technical Specifications

    ☆ Supply Voltage: 20VDC~27VDC
    ☆ System Current: Max.0.5A
    ☆ Communication Distance
             RS485: Less than 1200m
             CAN: Less than 3000m
    ☆ Display: 8(Line)x18(characters)
    ☆ Network: According to network card
    ☆ Operating Environment
             0°C~+40-C
             >95%,non condensing
    ☆ Dimensions: 390mm W x 270mm H x 100mm D



Download:GST-NRP00_DS10105316 Datasheet
