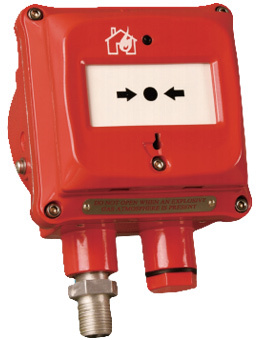

DI-9204Exd Digital Flame Proof Manual Call Point


Feature

    ☆ Built-in microprocessor for alarm detection and output control
    ☆ Electronically addressed
    ☆ An independent output contact is provided to control periphery
        devices
    ☆ The MCP is reusable. Press glass to alarm, and reset by
        special key


Technical Specifications

    ☆ Operating Voltage: Addressable Mode: Loop 24V
             Addressable Mode: Loop 24V
             Non-addressable Mode:24VDC
    ☆ Operation Current:
             Standby current ≤0.8mA
             Alarm current ≤2.5mA
    ☆ ype of Initiating Part: Reusable
    ☆ Indicator: Red. lt flashes normally and lights after alarming
    ☆ Programming Mode:
             Electronic programming
             Occupying one loop address
    ☆ Address Range: 1~242
    ☆ Output Capacity: Normally open volt-free output, contact capacity is 1A/24VDC
    ☆ Ingress Protection: IP65
    ☆ Ambient Temperature: -40°C~+70°C
    ☆ Relative Humidity: ≤95%RH,non-condensing
    ☆ Dimensions: 211mmx129mmx95mm
    ☆ Material and Color: ZL102 aluminum alloy, red
    ☆ Weight: 2kg
    ☆ Installation Hole Distance: 163mm
    ☆ Explosion-proof Mark:
             II2 G Ex db IIB T6 Gb,-40C≤Ta≤+70C
             II2 D Ex tb IIIC T80C Db



Download:DI-9204Exd_DS10102023 Datasheet
