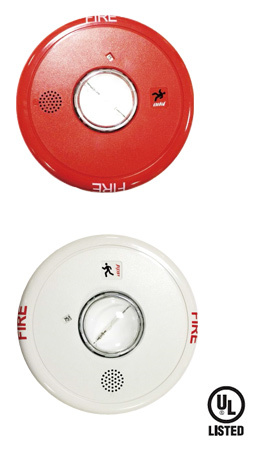

DC-M9416 Series Sounder Strobe



    ☆ Field-configurable options for selecting the desired dB output, temporal or steady sound output, and strobe signal output.
    ☆ Field-configurable switch for selecting the desired candela output.
    ☆ The candela output setting is locked in place and remains visible after final installation.
    ☆ This strobe features an enhanced synchronization circuit to comply with the latest requirements of UL 1971 Signaling Devices for the Hearing Impaired.
    ☆ Synchronized operation requires that you connect the DC-M9416 Series Ceiling Mount Sounder Strobe to a NAC output set for Synch Mode, or to a separate DC-M9410 Signal Synchronization Module.
    ☆ Designed for indoor use.

Technical Specifications

Operation Voltage 24 VDC or 24 VFWR nominal
Operation Current (under 24VDC)

Strobe (cd) Operating current

15cd 0.147A

30cd 0.190A

75cd 0.316A

110cd 0.372A
Sound Level(24VDC @ 10ft) High 83.3dBA, Low 78.0dBA
Light Output Selectable at 15, 30, 75 and 110 cd
Strobe signal rate 1 flash per second (fps)
Ingress Protection Rating IP33
Operating Temperature 32 to 120°F (0 to 49°C)
Relative Humanity 0 to 93% noncondensing
Compatible electrical boxes Single-gang box, 2-1/2 in. (64 mm) deep


Model number Description
DC-M9416R Sounder-strobe, red, with FIRE marking
DC-M9416W Sounder-strobe, white, with FIRE marking


Download:DC-M9416R_DS60102325 Datasheet

Download:DC-M9416W_DS60102324 Datasheet
