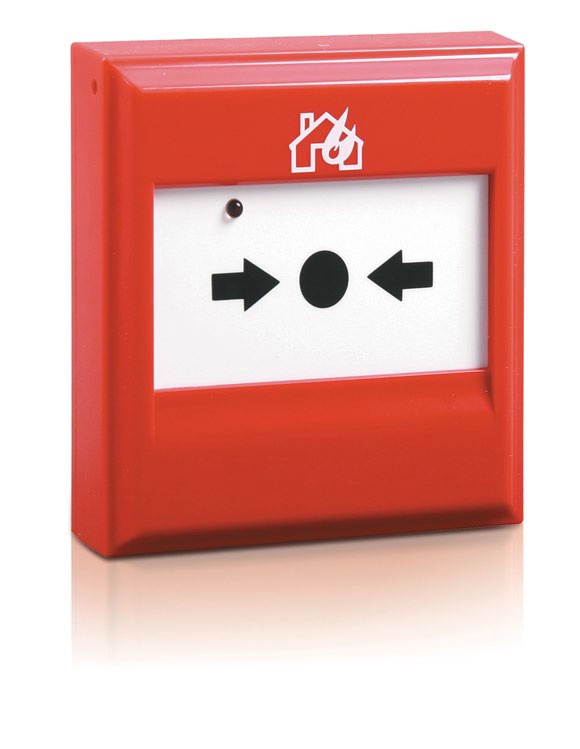

DC-9204E Innovation Manual Call Point


 Feature

    ☆ Alarming by pressing
    ☆ Re-settable (non-breaking glass) via special key
    ☆ Easy 1st terminate and 2nd fix installation
    ☆ Semi-flush or surface mount installation
    ☆ Plug-in structure
    ☆ LPCB Approved


Technical Specifications

    ☆ Operating Voltage: 24VDC
    ☆ Operating Current:
           Standby Current: 0
           Alarm Current≤ 30mA
    ☆ Operating Environment:
           Temperature: -10℃~+55℃
           Relative Humidity: 95%, non-condensing
    ☆ Protection Rating: IP43
    ☆ Application: Indoor use
    ☆ Dimensions: 87.1mm×87.1mm×58.5mm (with back box)



Download:DC-9204E_DS10106301 Datasheet
