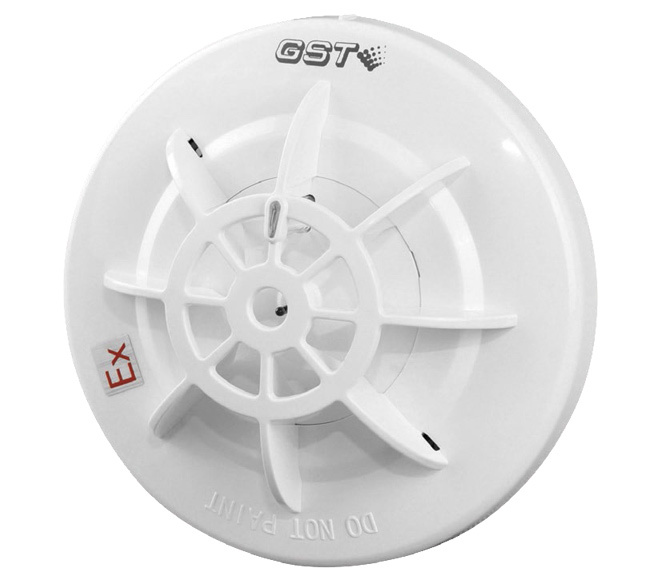

DC-9103(IS) Intrinsically Safe Conventional Rate of Rise and Fixed Temperature Heat Detector


Feature

    ☆Integrated algorithm for analyzing fire, improving the sensitivity
        highly
    ☆Self-diagnostic
    ☆Stable and reliable performance
    ☆Fire LED allows 360'viewing


Technical Specifications

    ☆Operating Voltage: 24V(16V~28V)
    ☆Standby Current: ≤60uA
    ☆Alarm Current: 10mA≤|≤30mA
    ☆Indicator: Red. Flashes in normal condition.and illuminates in alarm
    ☆Explosion-proof Mark: Ex ib llC T6 Gb
    ☆Explosion-proofCertificate: CE17.2124
    ☆Zener Barrier: U0=28,V10=93mA,C0=0.083uF,L0=4mH,
        Pi=651mW
    ☆Alarm Reset: Instantaneous Power-off(5s Min, 2.5vDC Max)
    ☆Detector Class: P (A1R and BS can be set, factorydefault is
        A1R)
    ☆Environment Temperature: A1R: typical 25c,ranging -10c-+50C
         BS :typical 40c,ranging -10℃-+65 C
    ☆Relative Humidity: ≤95%, non condensing
    ☆Material of Enclosure: ABS
    ☆Dimensions: Diameter:100mm
        Height: 53.3mm (with base)
    ☆Mounting Hole Distance: 45mm~75mm
    ☆Weight: About 130g



Download:DC-9103(IS)_DS10105035 Datasheet
