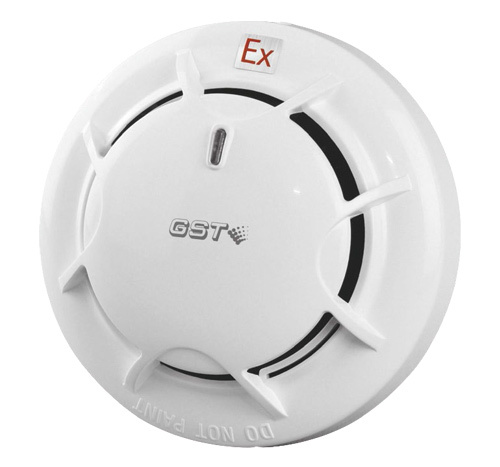

DC-9102(IS) Intrinsically Safe Conventional Photoelectric Smoke Detector


Feature

    ☆Drift compensation enables strong environmental adaptability
    ☆Integrated algorithm for analyzing fire, improving the sensitivity
       highly
    ☆Self-diagnostic
    ☆Removable innovative sensing chamber, easy for maintenance
    ☆Fire LED allows 360°viewing


Technical Specifications

    ☆Operating Voltage: 24V(16V~28V)
    ☆Standby Current: ≤60uA
    ☆Alarm Current: ≤30mA
    ☆Indicator: Red. Flashes in polling, and illuminates inalarm
    ☆Explosion-proof Mark: Ex ib llC T6 Gb
    ☆Explosion-proof Certificate: Diameter 100mm; CE16.2158
    ☆Zener Barrier: Uo=28V,lo=93mA,Co=0.083uF,Lo=4mH,
       o=651mW
    ☆Alarm Reset: Instantaneous Power-off(5s Min, 2.5vDC Max)
    ☆Environment Temperature: -10°C~+55°C
    ☆Relative Humidity: ≤95%, non condensing
    ☆Material of Enclosure: ABS
    ☆Dimensions: Diameter:100mm
       Height: 54.5mm (with base)
    ☆Mounting Hole Distance: 45mm~75mm
    ☆Weight: About 110g



Download:DC-9102(IS)_DS10105034 Datasheet
