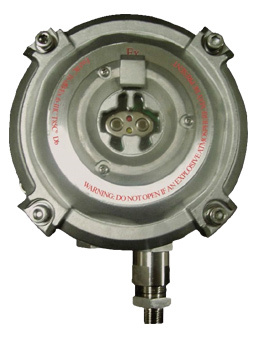

D-9107RExd Digital Flame Proof Dual IR Flame Detector


Feature

    ☆Dual band Infrared flame detection.
    ☆Sensitive to flame from material containing carbon.
    ☆Suitable for fire starting from flame in large indoor oroutdoor
       areas.
    ☆lmmune to sunlight, artificial light, heat radiation, provid-ing a
       means of reliable operation.
    ☆Integrated functions of both addressable and conventio-nal.
    ☆Electronically address by handheld programmer.


Technical Specifications

    ☆Operating Voltage: 24V
    ☆Operating Current:
          Loop:≤ 1mA
          24VDC: Standby current ≤ 20mA
                        Alarm current ≤ 30mA
    ☆ Indicator:
          Red LED: Flashes periodically in standbystate, and
                           steadily illuminates in fire alarm.
          Yellow LED: Off in standby state, and steadilyilluminates in
                              fault.
    ☆ Programming Mode: Electronically programming,1~242
    ☆ Sensitivity Levels:
          Level l: 25m
          Level ll: 17m
          Level lll: 12m
    ☆ Test Fire: 33cmx33cm n-heptane fire
    ☆ Output relay: 1A/25VDC
    ☆ Ingress Protection: IP65
    ☆ Material and Color: Stainless steel, metallic grey
    ☆ Ambient Temperature: -20°C~ +55°C
    ☆ Relative Humidity: ≤95%RH, non-condensing
    ☆ Dimensions: 166mm x 235mm x 199mm
    ☆ Weight: Detector: 4.8kg,Adjustment frame: 1.3kg



Download:D-9107RExd_DS10103050 Datasheet
