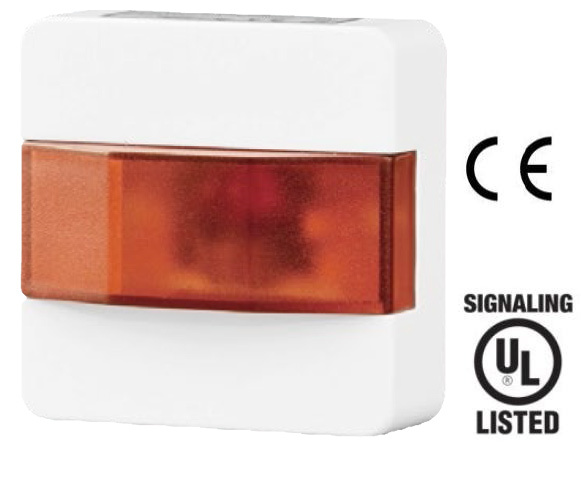

C-9314P Passive Remote Indicator


Feature

    ☆ LED indication available
    ☆ Built-in current-limiting resistor
    ☆ Remote indicator for direct connection to detector via remote indicator terminals
    ☆ Compatible with Intelligent and Conventional series detectors


Technical Specifications

    ☆ Operating Voltage: 2.0 - 3.0VDC
    ☆ Action current≤ 30mA
    ☆ Operating Environment:
           Temperature: 0℃~+37.8℃
           Relative Humidity≤ 85%, non condensing
    ☆ Dimensions: 64.5mm x 64.5mm x 31.4mm



Download:C-9314P_DS10102339 Datasheet
